Key selling points

1.【Native 1920*1080P Full HD Support 4K】, supporting various high-definition video inputs.
2. 【Fully enclosed optical machine】
3. 【Stereo speakers】
4. 【2.4+5G dual-band Wifi】
5. 【1/2GB RAM+8/16GB ROM】
6. 【BT5.2 Bluetooth Support】
7. 【Auto Correction Feature.】
8. 【Auto Focus】
9. 【Support HDMI-IN】
10.【Android13.0】
11.【P20 Pro support 360° degrees Vertical Adjustment】
12.【Support Screen Mirroring】

Product Model

1. P20

Projection Technology 3.5inch 1080P LCD (Totally-enclosed light Engine)
Display Chip LED light source
Light Luminance 350 ANSI Lumens
Standard Resolution 1920*1080
Projection Area 40inch--150inch
Projection Ratio 1.35:1
Projection Distance 1.2m--4.5m
Aspect Ratio 16:9
Focus mode auto focus
Keystone Correction Auto keystone
Screen Mirror Airplay/MiraCast
OS Android 13
Main Chipset Amlogic T950S
CPU Quad core ARM Cortex-A53 CPU
GPU ARM Mali-450 MP2 GPU
Buffer Memory 1GB DDR4
Memory 8GB EMMC
WIFI WiFi6 2.4G/5G 802.11a/b/g/n/ac/ax
Bluetooth BT 5.2
"Video Support
(up to 4kx2k@60fps )" H.265 HEVC MP-10@L5.0 up to 4kx2k@30fps; VP9 Profile 2-10 up to 1080p@60fps; H.264 AVC HP@ L4.2 up to 1080p@60fps ; H.264 MVC up to 1080p@60fps; MPEG -4 ASP @L5 up to 1080P@60fps (ISO-14496); WMV/VC-1 SP/MP/AP up to 1080p@60fps; AVS - P16(AVS+)/AVS -P2 Jizhun Profile up to 1080P@60fps; MPEG-2 MP/HL up to 1080P@60fps (ISO -13818); MPEG-1 MP/HL up to 1080P@60fps (ISO -11172); Realvideo 8/9/10 up to 1080p; (ideo encoding in RM, RMVB, and FLV formats is not supported. Audio encoding in Dolby, AC3/DTS format is not supported)
Audio Support Supports MP3, AAC, WMA, RM, FLAC, Ogg。
Image Support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918); Supports JPEG thumbnail, scaling, rotation and transition effects
Extended Storage Support Hard Disk
Remote Control Support IR Remote and 2.4G wireless control
Built-in speaker 1*5W Speaker
Power Performance AC100-240V，50/60Hz
Port "1*HDMI: HDMI2.1 Input; 1*USB: USB 2.0; 1*Earphone: Audio output, 3.5mm joint; 1*AV IN
1*Ethernet:100M "
Colour Gray
Net weight 1.76kg
Dimension 211.2*184.72*136.5mm
Gift Box weight 2.14kg
Gift Box Size 254*250*158mm
Carton box weight 18.20kg
Carton box size 535*520*337mm(8PCS)

2. P20 Pro

Projection Technology 3.5inch 1080P LCD(Totally-enclosed light Engine)
Display Chip LED light source
Light Luminance 350 ANSI Lumens
Standard Resolution 1920*1080
Projection Area 40inch-150inch
Projection Ratio 1.35:1
Projection Distance 1.2m--4.5m
Aspect Ratio 16:9
Focus mode Auto focus
Keystone Correction Auto keystone
Screen Mirror Airplay/MiraCast
OS Android 13
Main Chipset Amlogic T950S
CPU Quad core ARM Cortex-A53 CPU
GPU ARM Mali-450 MP2 GPU
Buffer Memory 2GB DDR4
Memory 16GB EMMC
WIFI WiFi6 2.4G/5G 802.11a/b/g/n/ac/ax
Bluetooth BT 5.2
"Video Support
(up to 4kx2k@60fps )" H.265 HEVC MP-10@L5.0 up to 4kx2k@30fps; VP9 Profile 2-10 up to 1080p@60fps; H.264 AVC HP@ L4.2 up to 1080p@60fps ; H.264 MVC up to 1080p@60fps; MPEG -4 ASP @L5 up to 1080P@60fps (ISO-14496); WMV/VC-1 SP/MP/AP up to 1080p@60fps; AVS - P16(AVS+)/AVS -P2 Jizhun Profile up to 1080P@60fps; MPEG-2 MP/HL up to 1080P@60fps (ISO -13818); MPEG-1 MP/HL up to 1080P@60fps (ISO -11172); Realvideo 8/9/10 up to 1080p; (ideo encoding in RM, RMVB, and FLV formats is not supported. Audio encoding in Dolby, AC3/DTS format is not supported)
Audio Support Supports MP3, AAC, WMA, RM, FLAC, Ogg。
Image Support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918); Supports JPEG thumbnail, scaling, rotation and transition effects
Extended Storage Support Hard Disk
Remote Control Support IR Remote and 2.4G wireless control
Built-in speaker 1*5W Speaker
Power Performance AC100-240V，50/60Hz
Port "1*HDMI: HDMI2.1 Input; 1*USB: USB 2.0; 1*Earphone: Audio output, 3.5mm joint; 1*AV IN
1*Ethernet:100M "
Colour Gray
Net weight 2kg
Dimension 239.96*184.72*207.3mm
Gift Box weight 2.38kg
Gift Box Size 254*250*158mm
Carton box weight 20.12kg
Carton box size 535*520*337mm(8PCS)

Product Description

1. High Performance Processor, 1/2G-8/16G Memory

2. Fully enclosed optical machine.

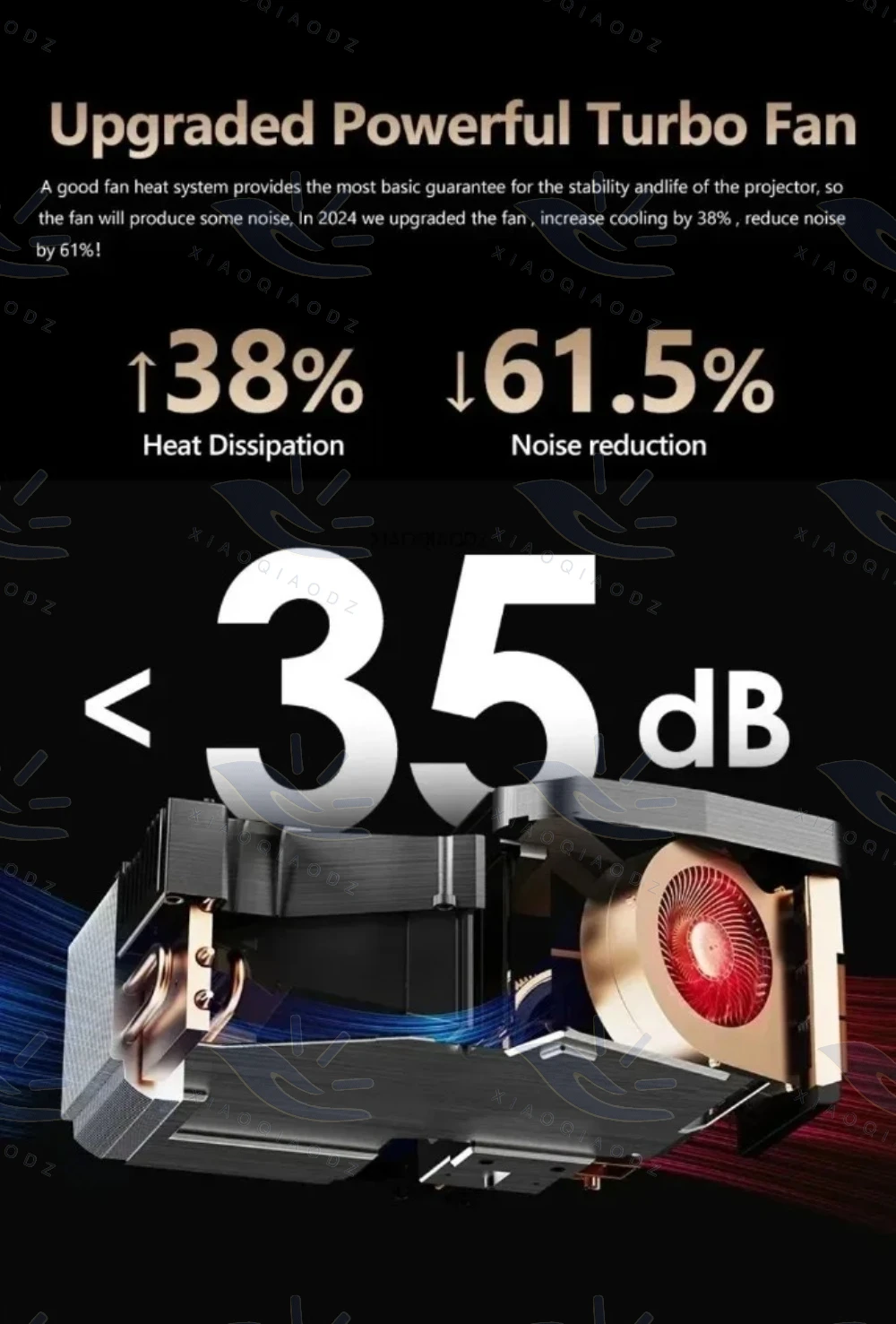

3. Upgraded Powerful Turbo Fan

A good fan heat system provides the most basic grarantee for the stability and life of the projector, so the fan will produce some noise. In 2024 we upgraded the fanm increase cooling by 38%, reduce noise by 61%.

4. Native1920*1080P Full HD Resolution

5. Auto Focus And Auto Keystoone

Auto Focus and automatically correct the skewed image, so that you can get a square picture every time you project.

6. Wifi 6 2.4G+5G Ultra Fast Wireless Connection

7. Bluetooth 5.2

Two-way of using Bluetooth5.2: Connect Bluetooth Speaker, and Used as Bluetooth Speaker.

8. Convenient Screen Mirror

Connect your iphone/Android Smart Phone or Tablet by WiFi. Freely Screen Mirror Your Phone/Tablet/Laptop.

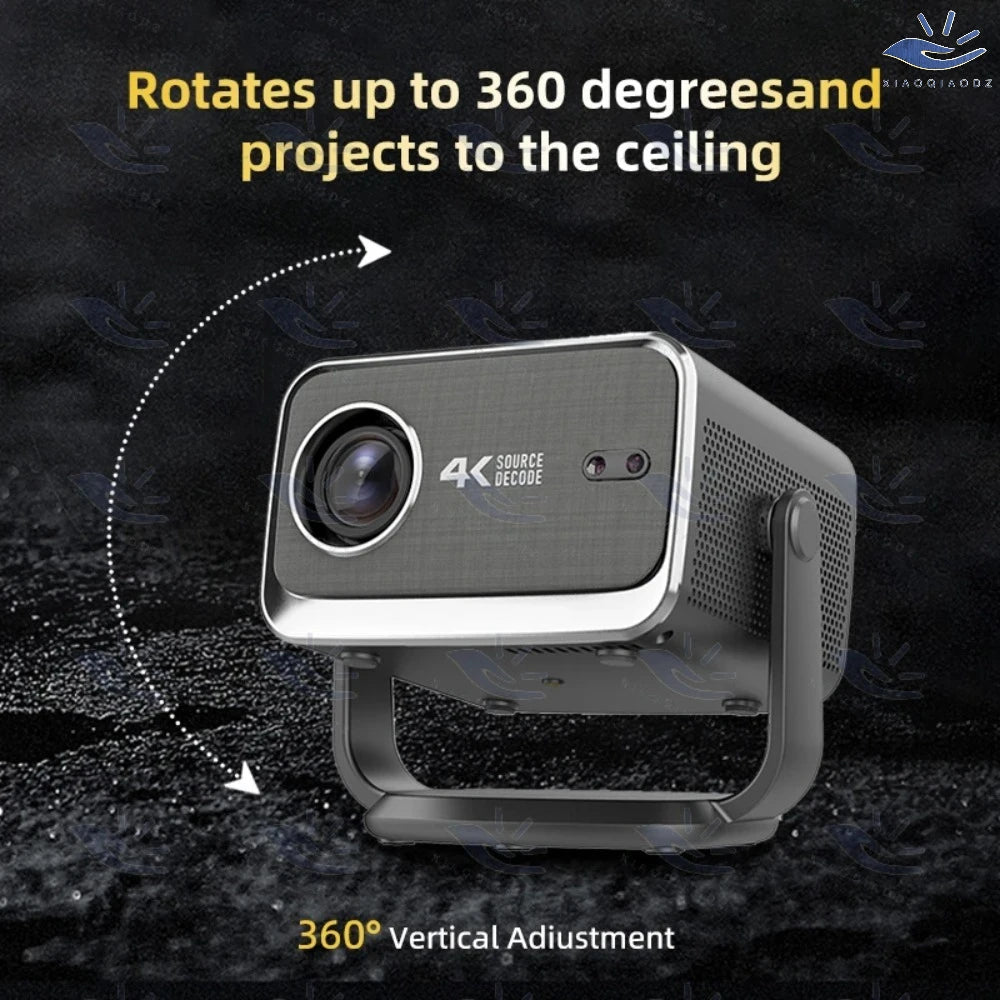

9. Rotates up to 360° degrees sand projects to the ceiling

10. Enjoy Your Home Theater

11. Android 13

12. Product Photo

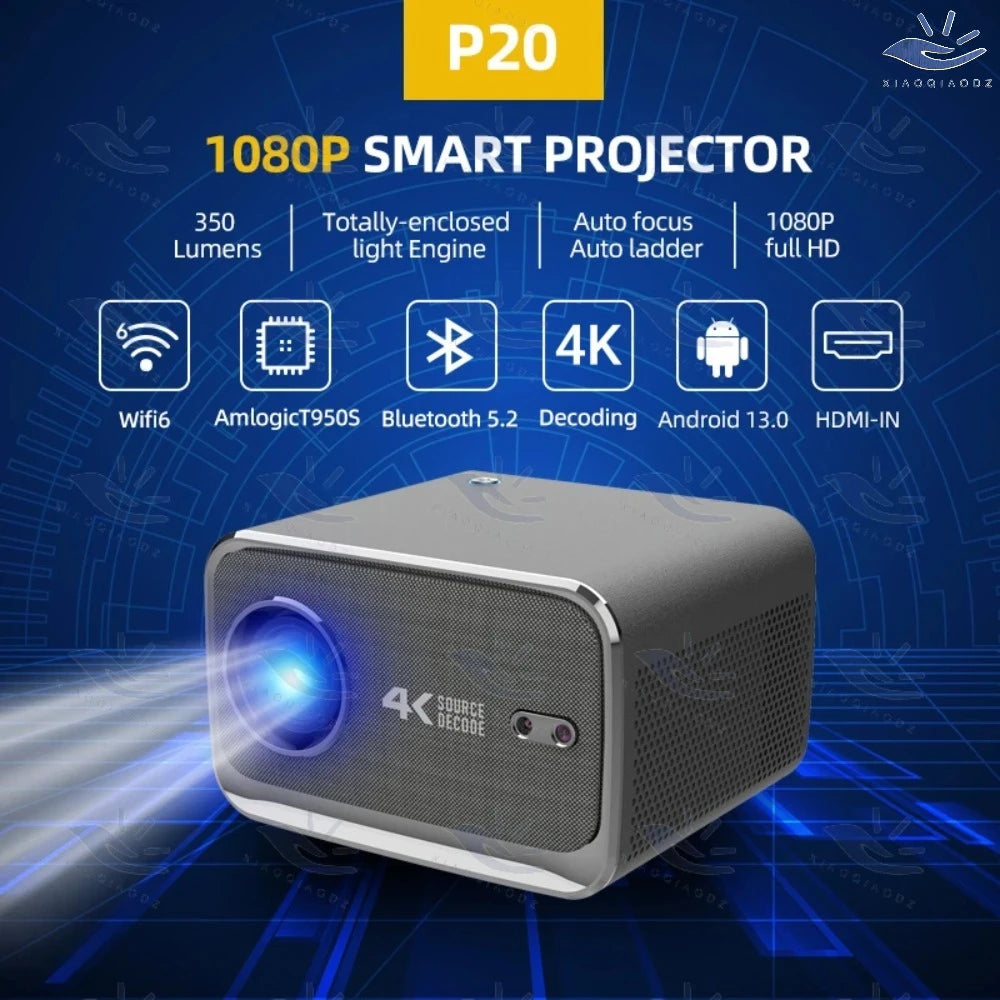

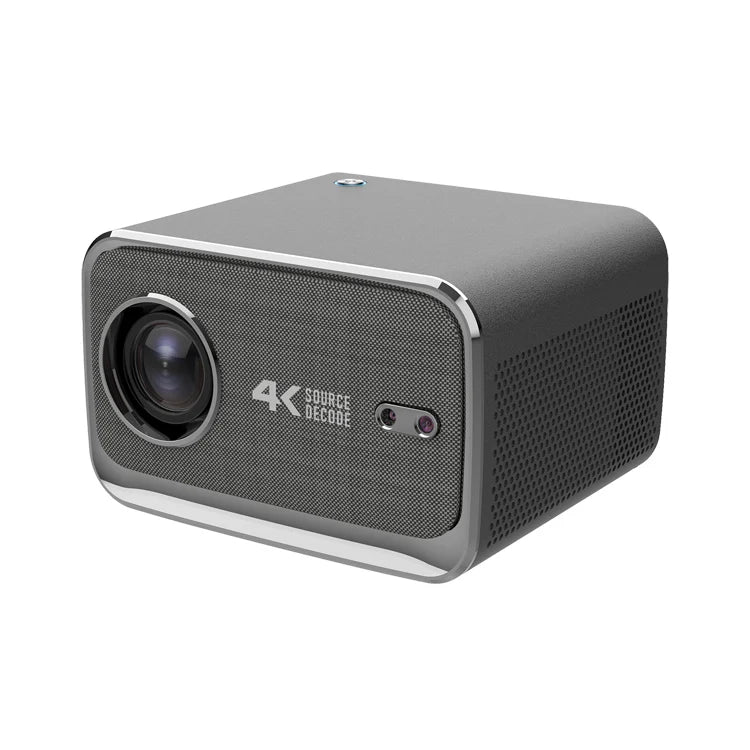

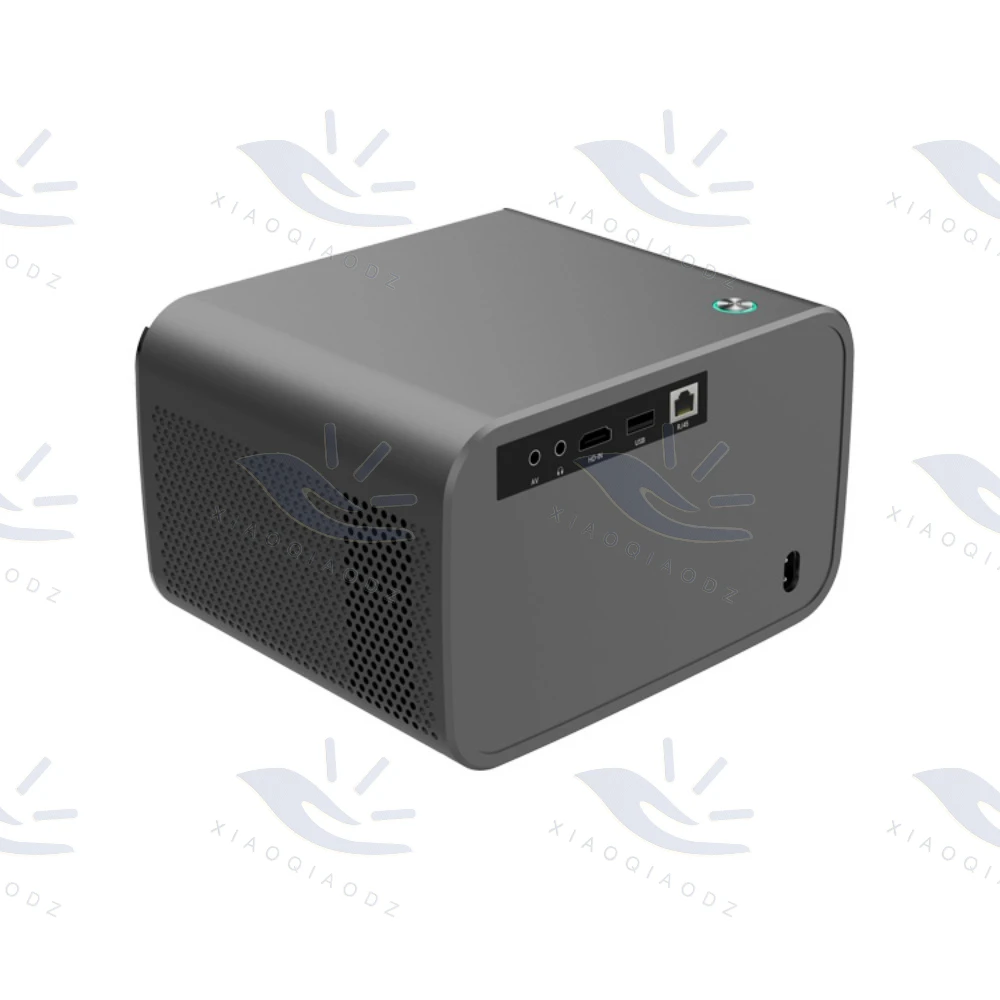

P20

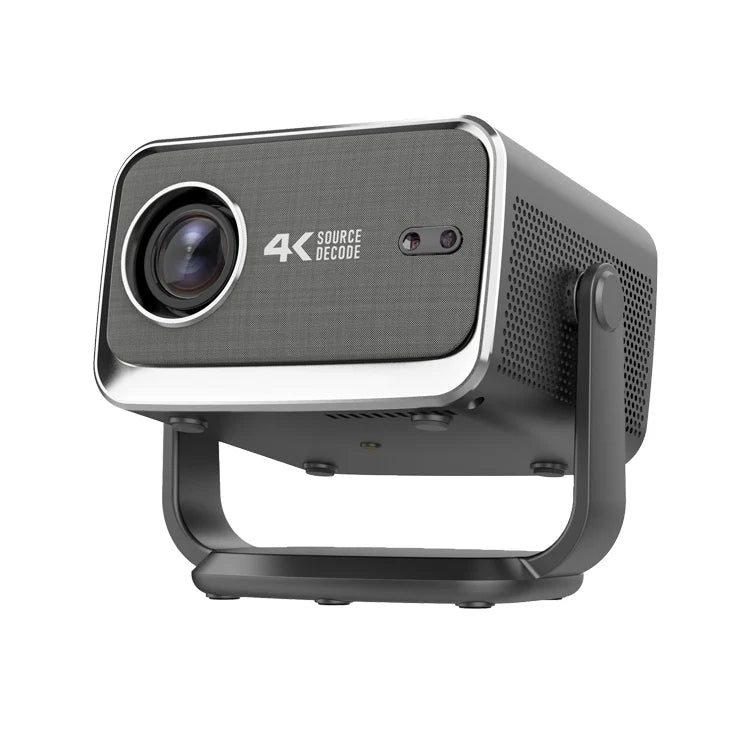

P20 Pro

13. Product List

H10*1,User Manual*1, Power cord*1, HD cable*1, Remote control*1
