Qr code barcode identification module Scanning module Serial communication UART interface embedded

After the scan is restored to the factory, scan the serial port again (for details, see Page 0) to enable the code scan function

Information baby describe a network backup download link: https://pan.baidu.com/s/1qDRd0f5UOJK8HBXFXJUVEw

Extraction code: HD0D

Copy this section of content after opening Baidu web disk mobile App, more convenient operation oh

Product Introduction:

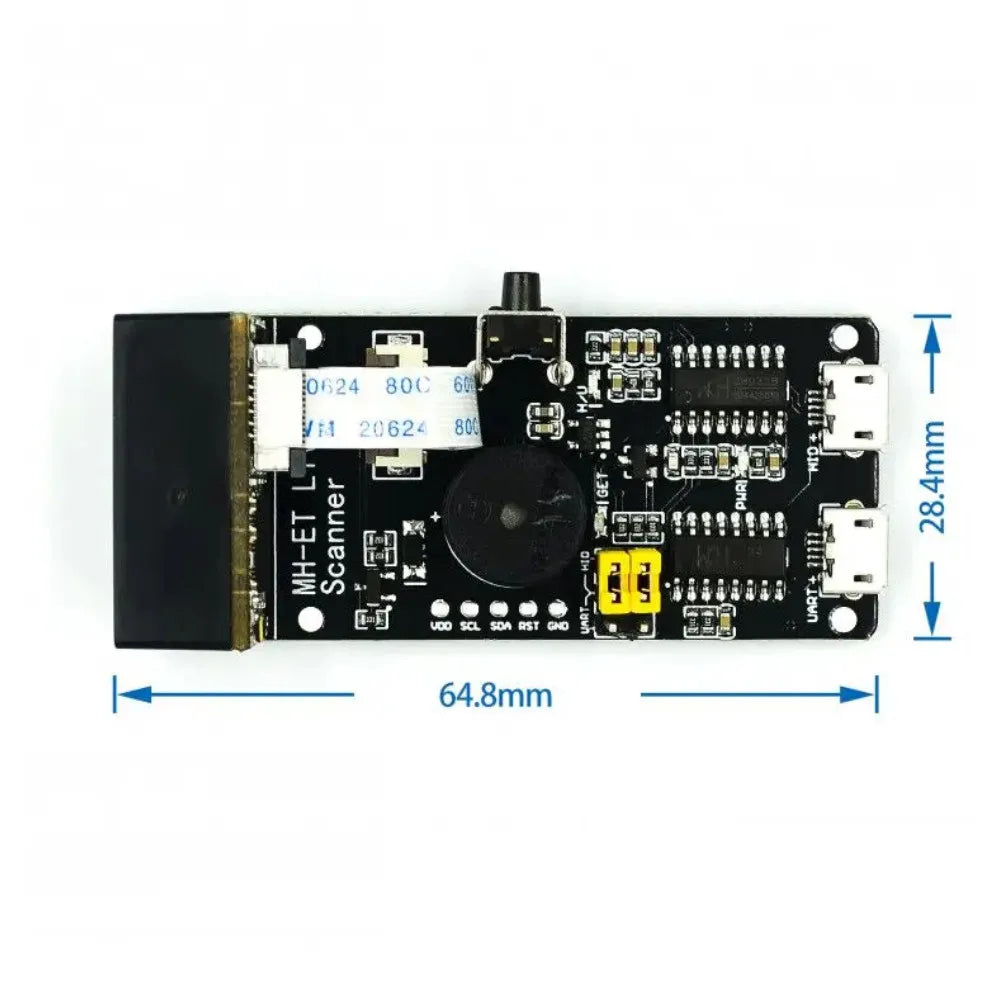

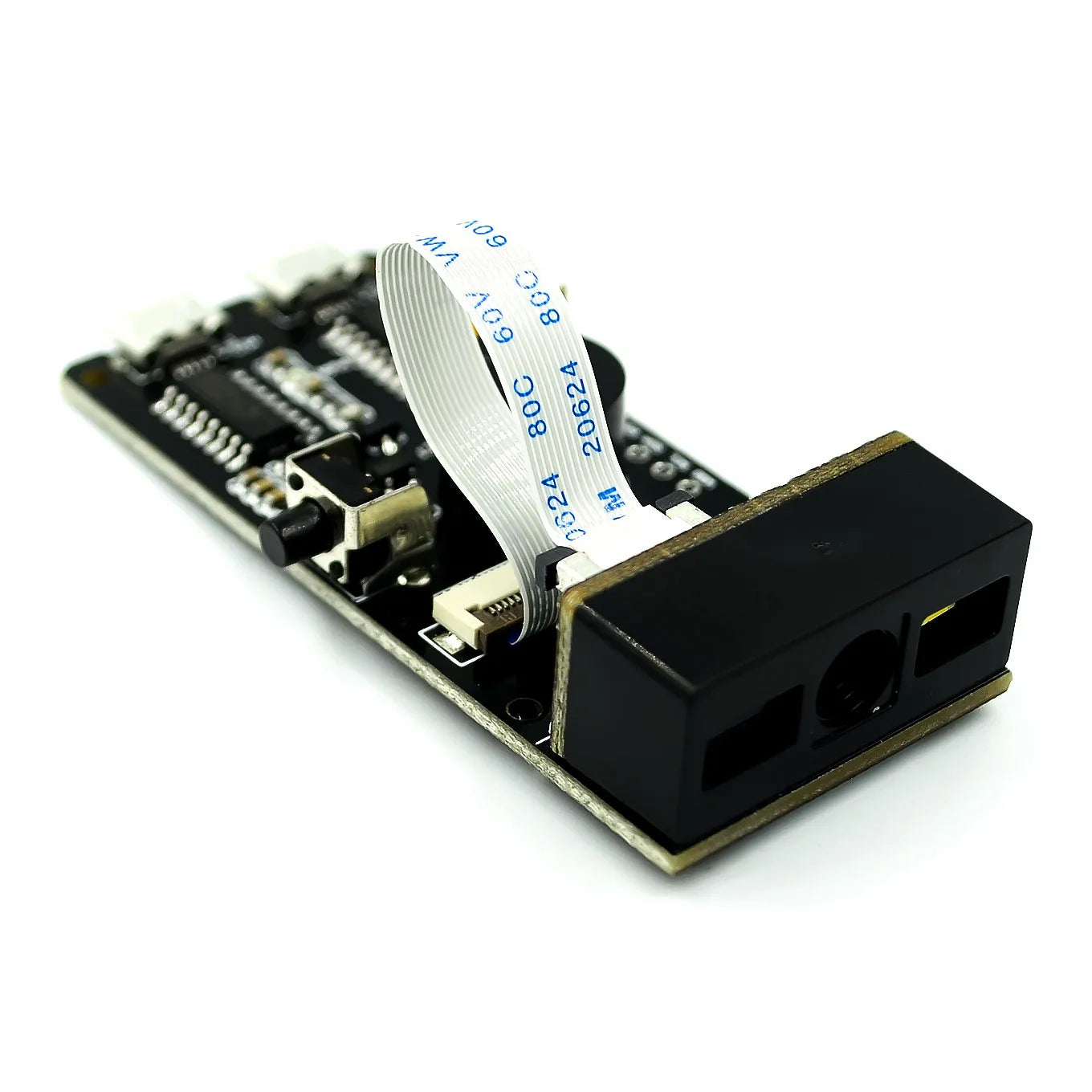

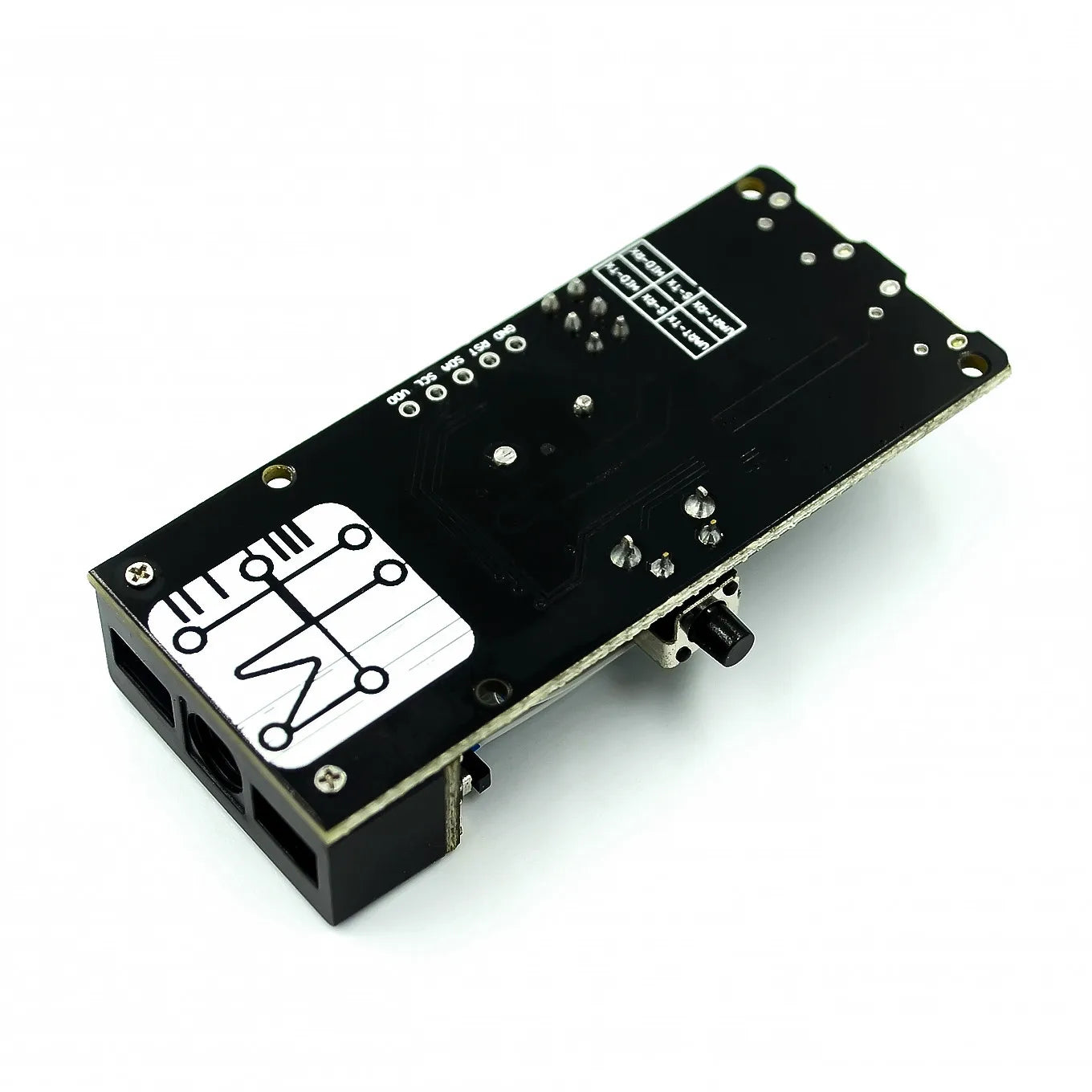

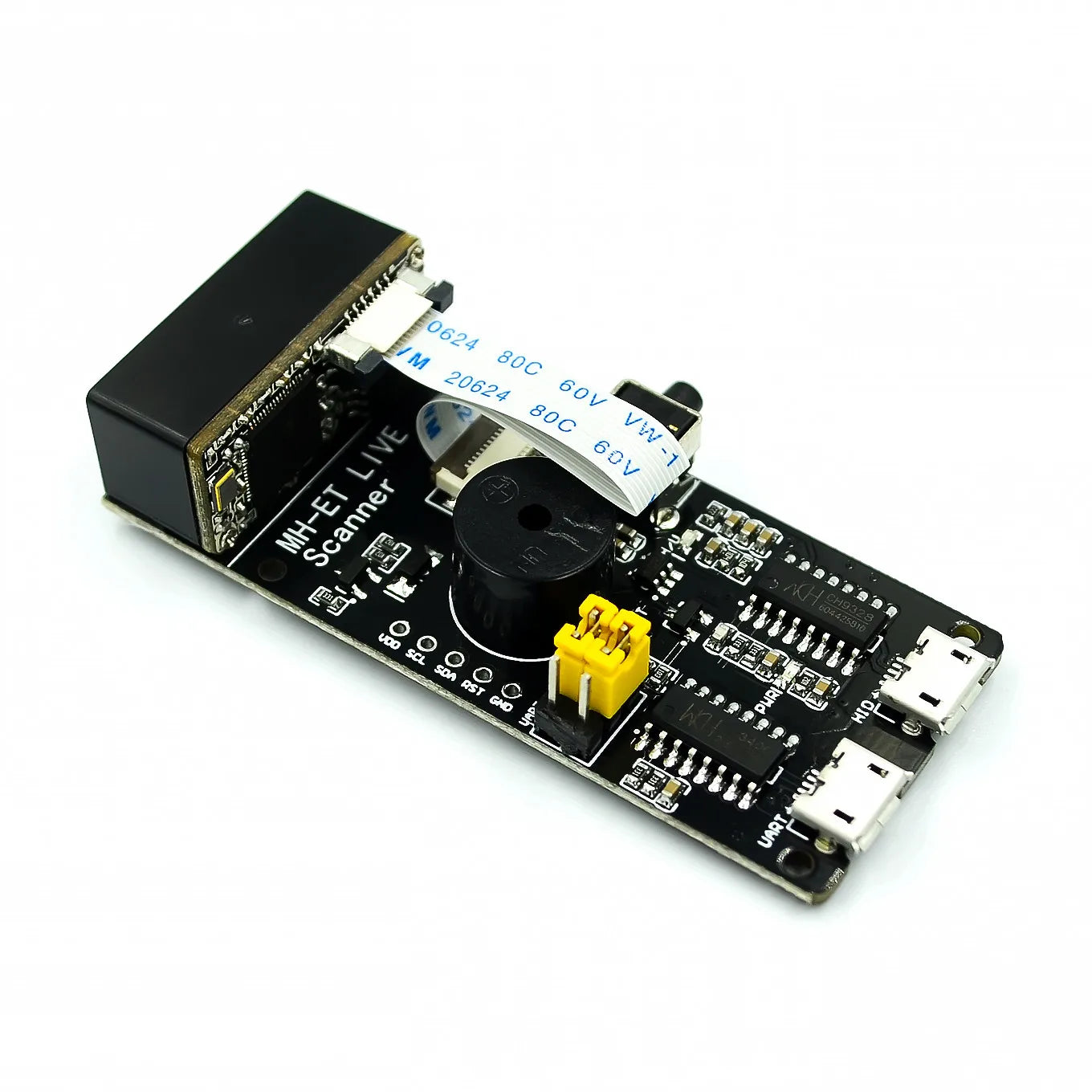

Mh-et LIVE Scanner V3.0 is bar code, two-dimensional code scanning identification module, the use of professional image processing chip for bar code recognition, can maintain fast and stable reading in a complex environment of high performance, can quickly and accurately read paper, screen, plastic and other carriers on the one-dimensional code and two-dimensional code. Compact size, onboard USB and UART interface, can be directly connected to the computer for use, also can be integrated into a variety of devices. The product has the characteristics of low power consumption and low heat. Quick start, cold start and hot start can keep fast start, no need to wait, open and sweep.

Product features:

It is easy to operate without understanding complex image recognition algorithms

Support Barcode, QR and other universal one-dimensional code and two-dimensional code reading

Onboard micro USB and UART serial port, which can be connected to computers or embedded devices

Onboard auxiliary light source, able to read in complete darkness environment

Supports setting module parameters by scanning setting codes (see specifications for details)

Configurable parameters include reading mode, baud rate setting, command mode, prompt tone output adjustment, output format, bar code selective setting.

Barcode/two-dimensional code reading type:

Barcode reading Type (1D) : UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39,  Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5,  Codabar,MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

Type of QR Code (2D) : QR Code,PDF417,Data Matrix
