SPECIFICATIONS

Battery Included: No

Brand Name: NONE

High-concerned chemical: None

Origin: Mainland China

Power Source: AC,AC

Saw Type: Mini Saw

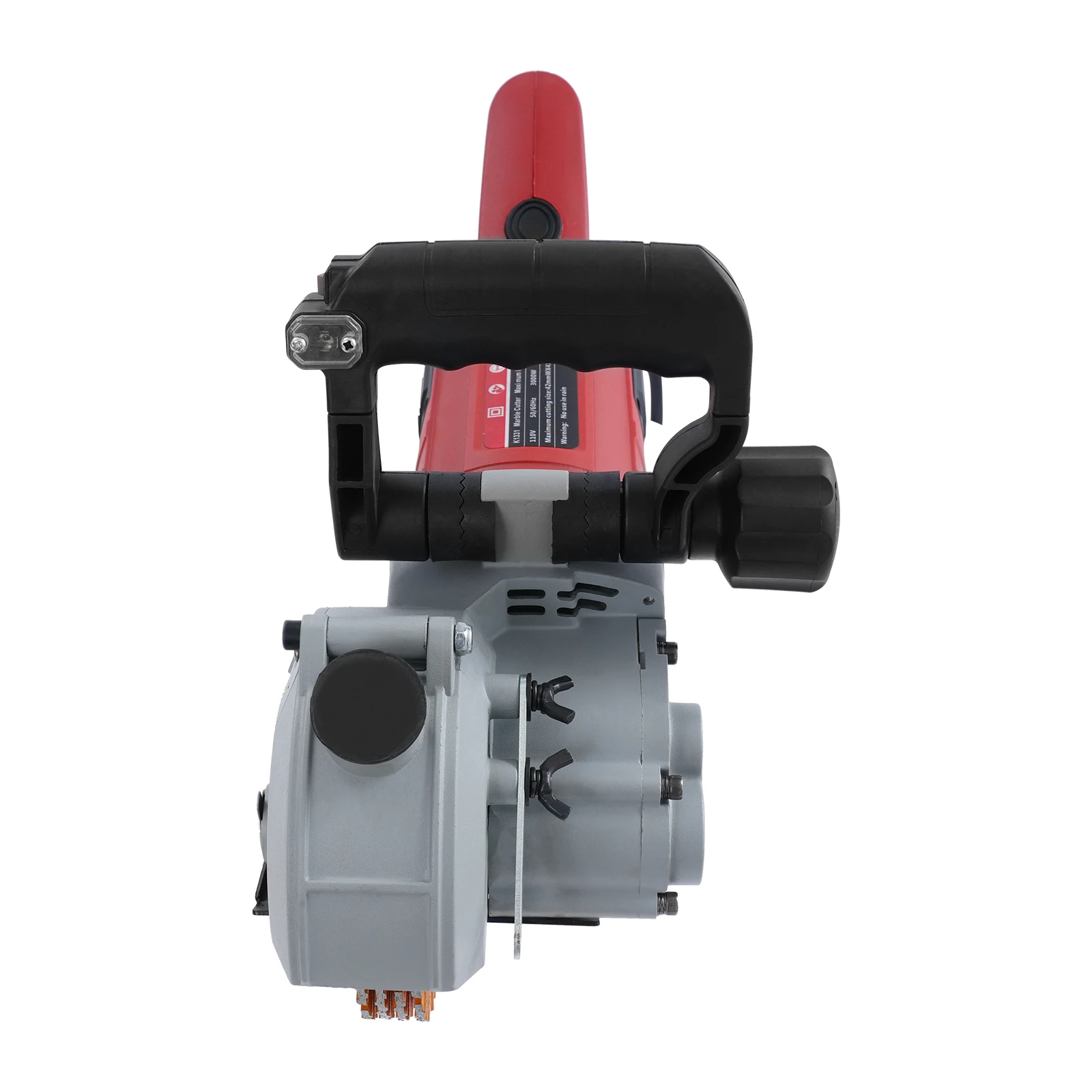

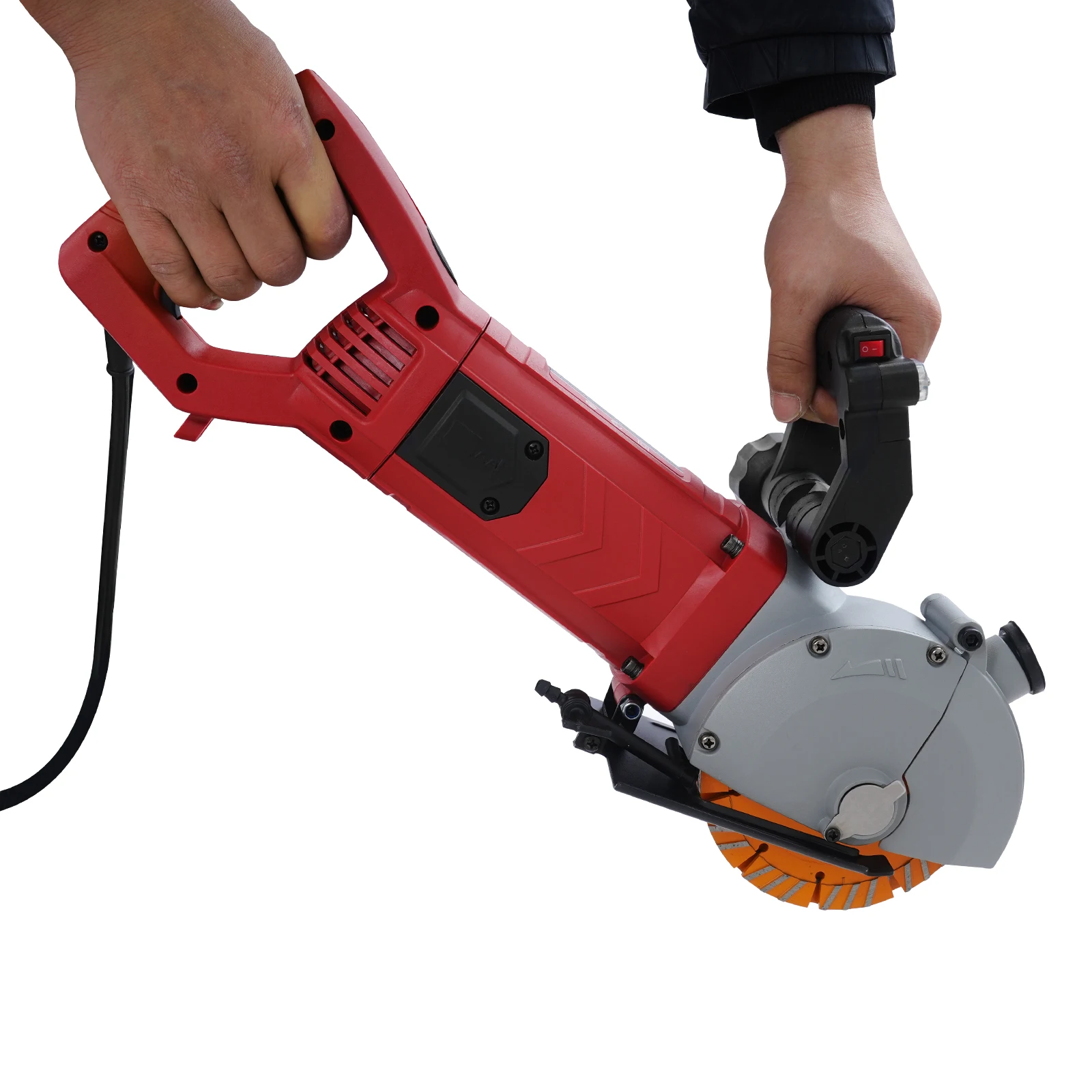

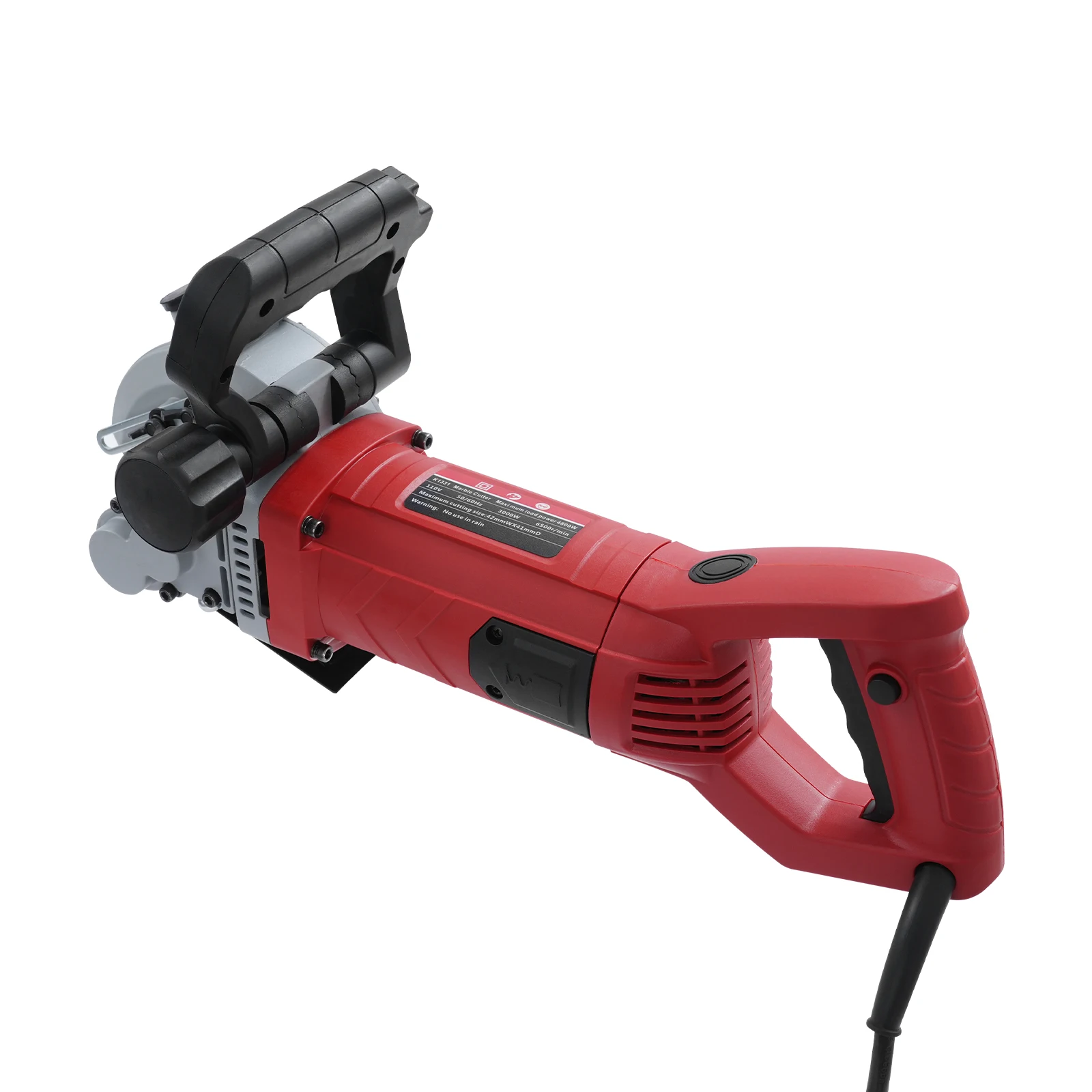

Electric Wall Groove Cutting Machine

The 4800W all-copper motor with a maximum speed of 6500rpm and a reinforced high hardness diamond alloy blade, which can easily cut concrete walls, black heart red bricks, cinder blocks, steel bars, and other super hard walls, bringing more convenience. The interface allows the connection of an external vacuum cleaner (not included), which, together with the equipped pump, enables dust-free operation and protects the user's health while reducing the environmental pollution.

Product Description

Application

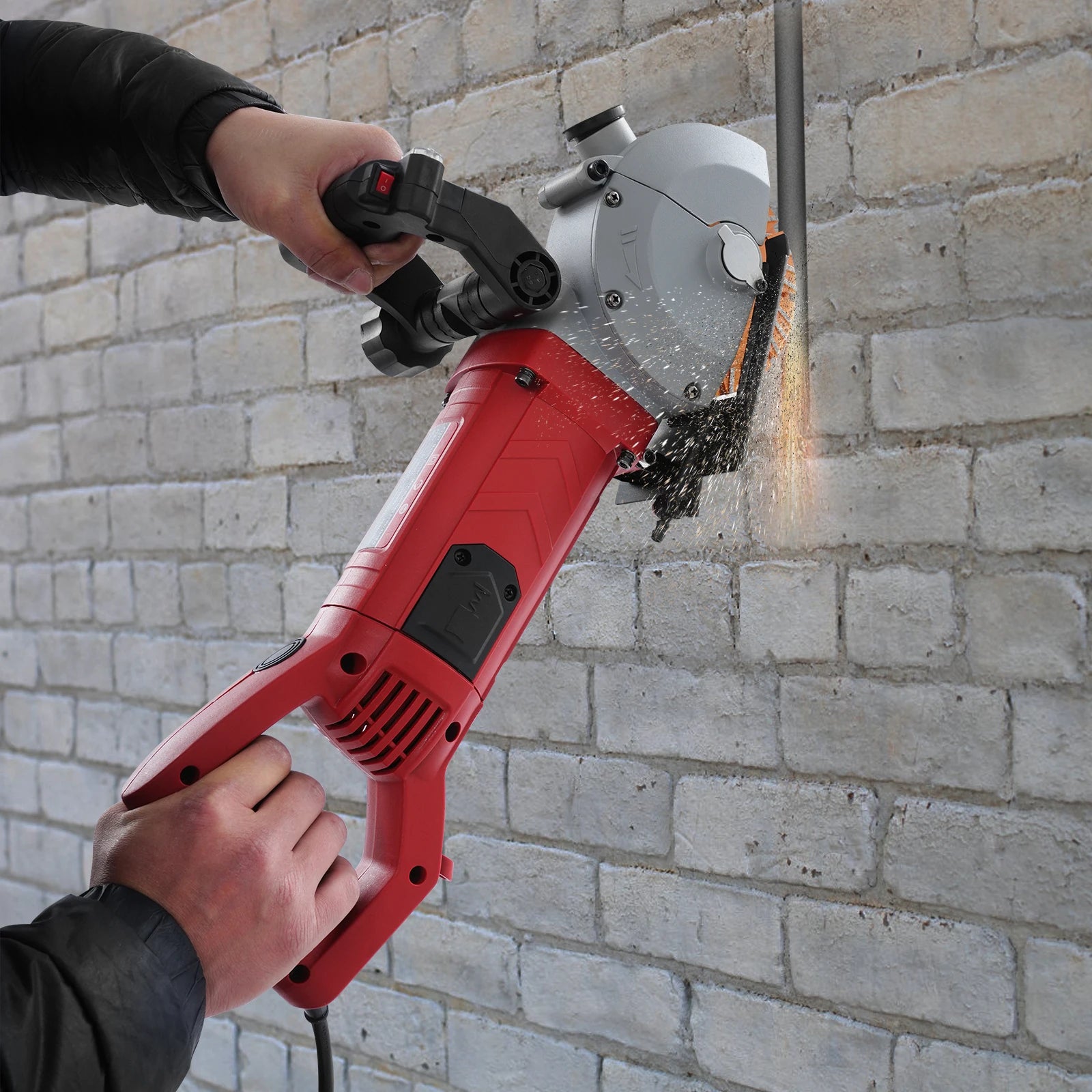

This product is suitable for many occasions such as building construction, decoration, demolition, etc. It can be used to cut super hard walls such as concrete poured walls, black heart red bricks, cinder blocks, steel bars, etc. It is also suitable for electricians, plumbers, and other construction workers.

Specification

Material: Copper, Aluminum Alloy, Diamond Alloy, Nylon

Model: K1331

Plug: US Standard

Voltage Frequency: 110V, 50/60HZ

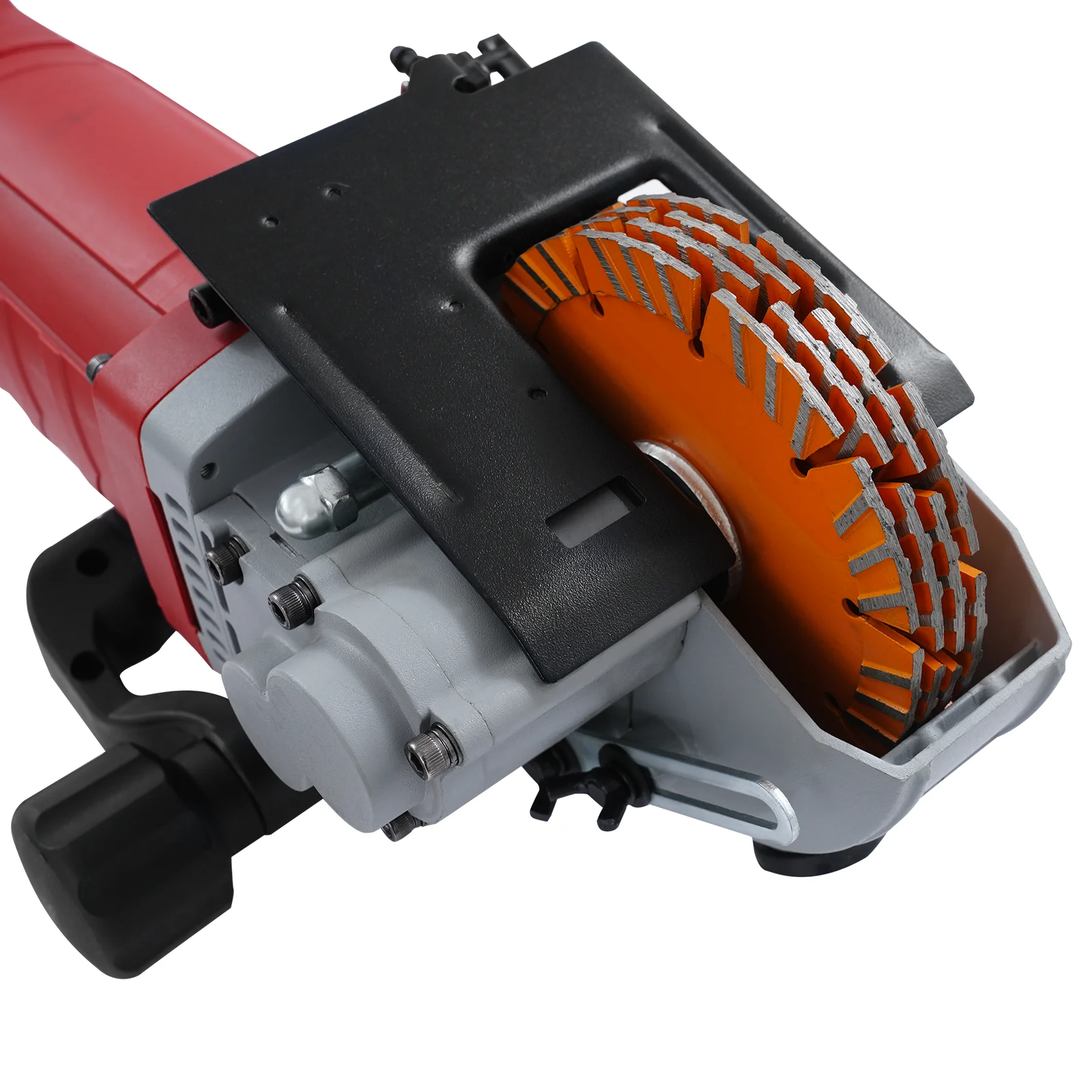

Saw Blade Specification: 133*20*4.5 mm/5.2*0.79*0.18in

Maximum Sawing Depth: 41 mm/1.6in

Maximum Sawing Width: 42mm/1.65in

Power Cord Length: 3 m/9.8ft

Rated Power: 3000W

Maximum Load Power: 4800W

No-load Speed: 6500rpm

Dust-absorbing Hose Length: about 3 m/9.8ft

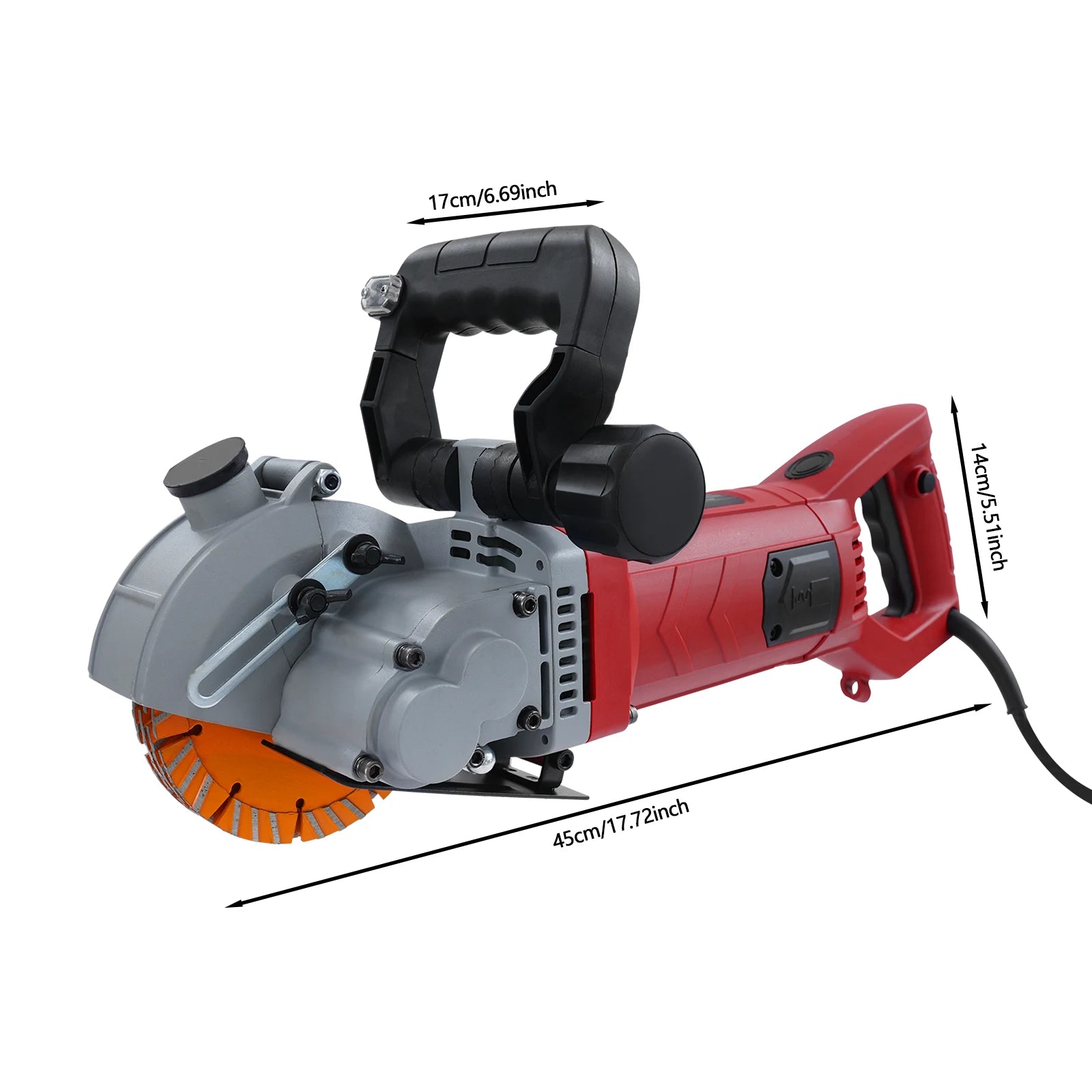

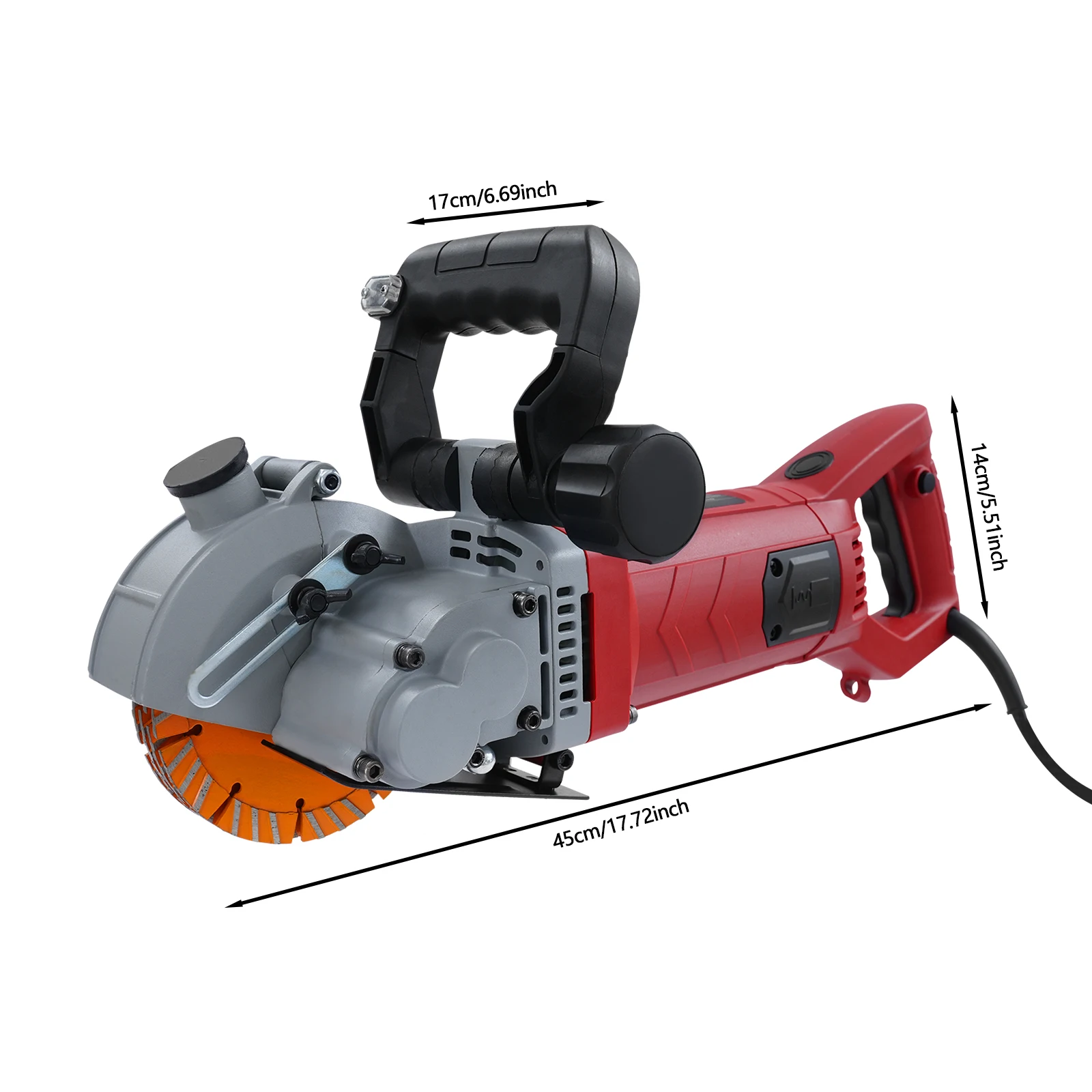

Handle Length: 17cm/6.69in

Product Size(L*H): 45*14cm/17.72*5.51in

Package Size: 55*32*22cm/21.7*12.6*8.7in

Gross Weight: 10.34kg/22.8 lbs

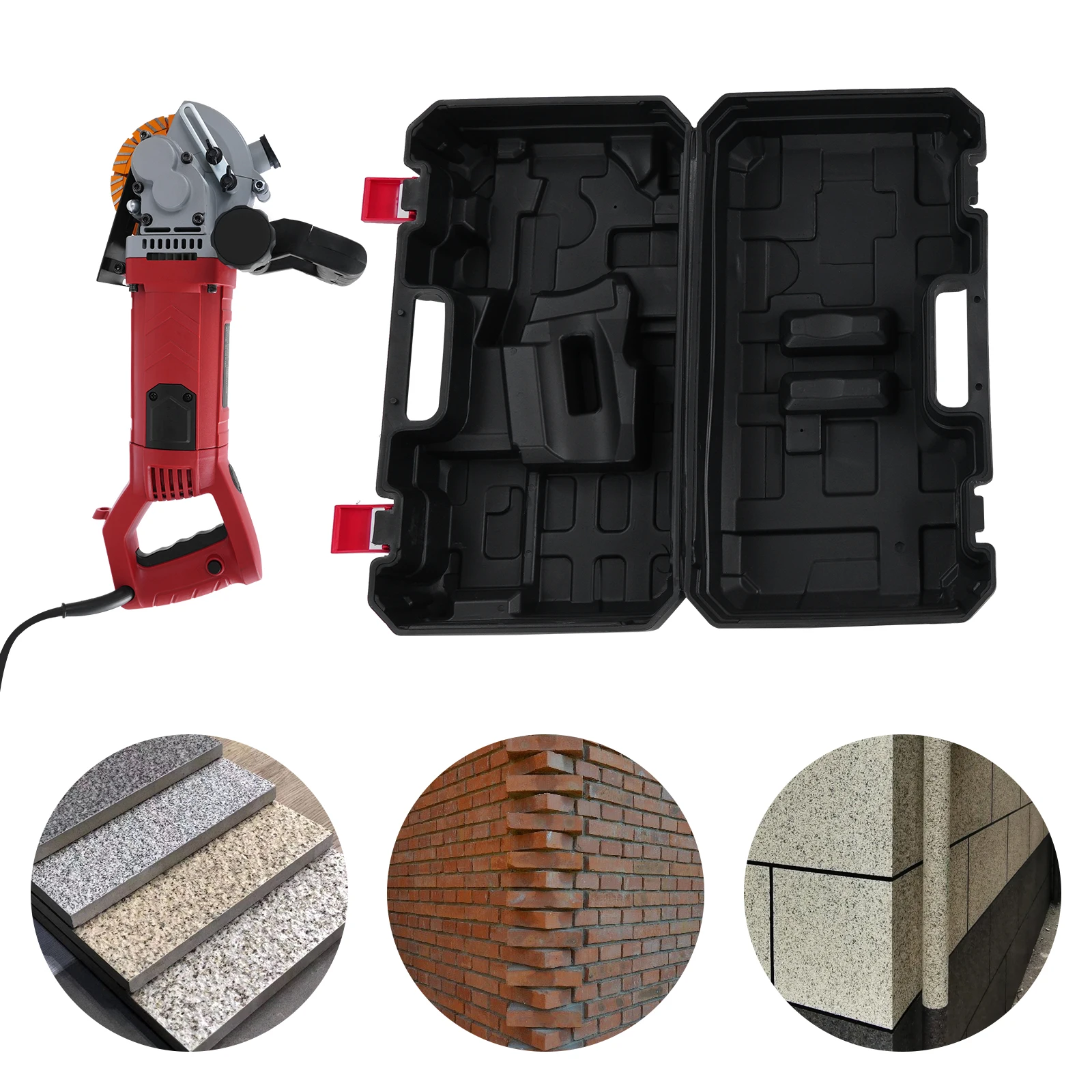

Package Included

1* Electric Wall Groove Cutting Machine(With Leakage Protector)

1* Water Pump

1* Dust-absorbing Hose

5* Blades(Four Preinstalled)

1* Carrying Case

1* English Manual

All Accessories for Use

Notes

1. The maximum diameter of the blade that can be installed is 133 mm, and up to 7 pieces can be installed at a time.

2. When using water grooving, please keep the head down to avoid water entering the body of the machine. When using a vacuum cleaner for slotting, when the bottom plate is adjusted to the bottom position, please put the front protective cover completely against the wall or floor, to achieve the maximum effect of vacuuming.

3. Please check the carbon brush condition regularly, it is generally recommended to replace the carbon brush once in 80 hours of use. When the spark is large, also need to replace the carbon brush in time.

4. When cleaning the machine head, please avoid water entering the machine body through the ventilation hole.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
