SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

color: red

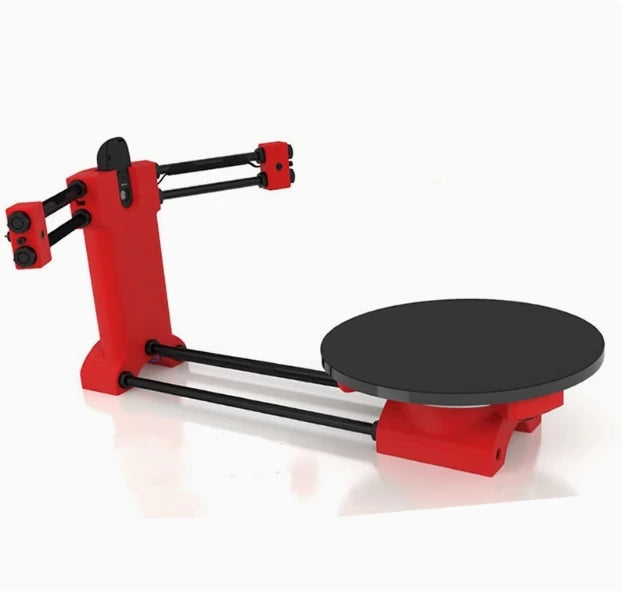

DIY Home 3D Laser Scanner Camera Kit 3D Scanner

Objects that are easy to scan with 3D scanners:



1. Opaque objects

2. The weight of the object is less than 3 kilograms

3. Object volume greater than 5x5CM (spatial diameter and height)

4. The volume of the object is less than 20.3x20.3CM

5. Object is stable and immobile




3D scanners are difficult to scan objects



1. Transparent objects (glass, organic plastic, etc.)

2. Luminous or strongly reflective objects

3. Objects with a volume less than 5x5 centimeters

4. Very dark objects and objects with fuzzy surface (such as Stuffed toy and black objects)



Objects not to be scanned by 3D scanners

1. Objects with a volume greater than 20.3x20.3CM

2. Moving objects

3. Weight greater than 3 kilograms

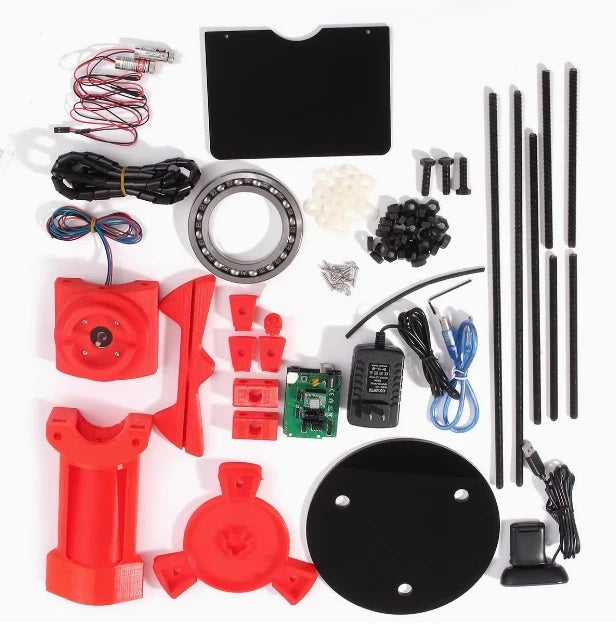

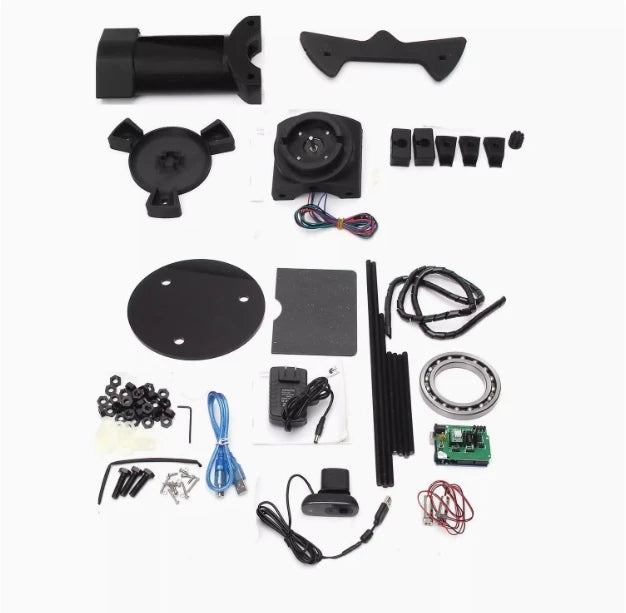

Checklist:

1, 1 * Control board

2, 1 * ZUM Scan expansion board

3, 1 * A4988

4, 1 * 270 cameras

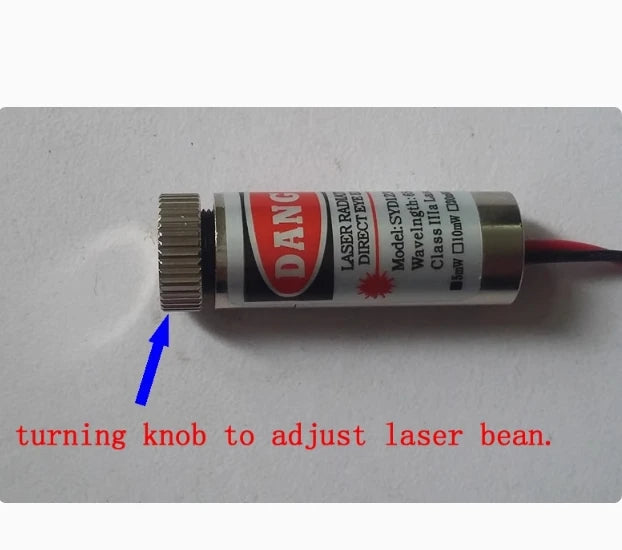

5, 2 * Laser

6, 1 * 42 motor

7, 1 * 16014 bearing

8, 1 * 12V, 2A power supply

9. 1 * 200mm acrylic platform

10, 1 * Acrylic calibration plate

11, 1 * Calibration paper

12, 1 * Black tie strap

13, 2 * M8 * 400mm screw rod

14, 4 * M8 * 170mm screw rod

15, 1 * M8 * 290mm screw rod

16, 10 * M3 * 10 screws

17, 6 * M3 nut

18, 3 * M8 * 10mm screw

19, 28 * M8 nut

20, 18 * M8 gasket

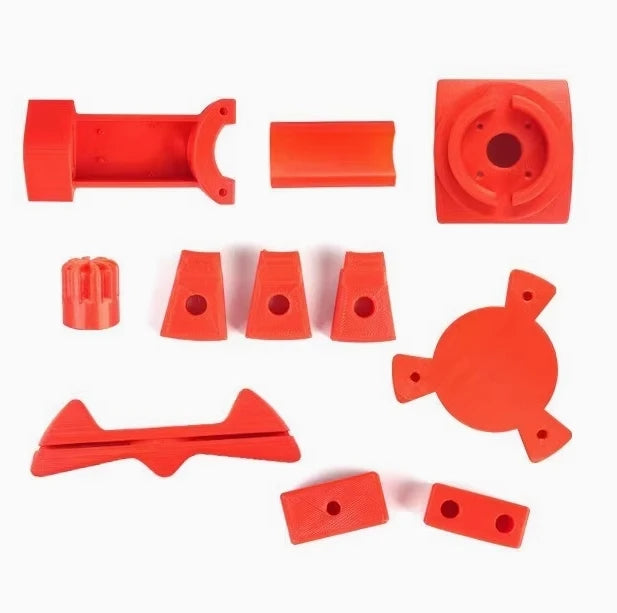

21. 1 set of printed copies

22. Installation/usage instructions and videos, supporting software and source code
