The speaker's multi-driver array brings out every detail in the mid and high frequencies. Get the most out of your music

Are your car's factory speakers not sounding fresh?
The QP A-Series speakers we build for you are high-performance replacements for older speakers, engineered from the ground up to bring your music back to life. You'll be able to enjoy the clear vocals, thick guitar riffs, powerful drums, and unique bass lines that have always been a part of your favorite songs but still hide behind low-quality speakers.

Built to make your music rock.
The speaker is equipped with a multi-layered mica array woofer that remains rigid when the volume is turned up, keeping distortion to a minimum for crystal-clear bass. Each woofer is paired with a midrange, tweeter and two super tweeters to add warmth and clarity to your driving soundtrack.

These speakers will sound great with your factory stereo, but will really shine when driven by an aftermarket receiver or external amplifier. Don't drive another day listening to tired tunes, when you can enjoy Pioneer sound quality with these speakers in your vehicle.

Specification:

Brand: Q-PERTORS

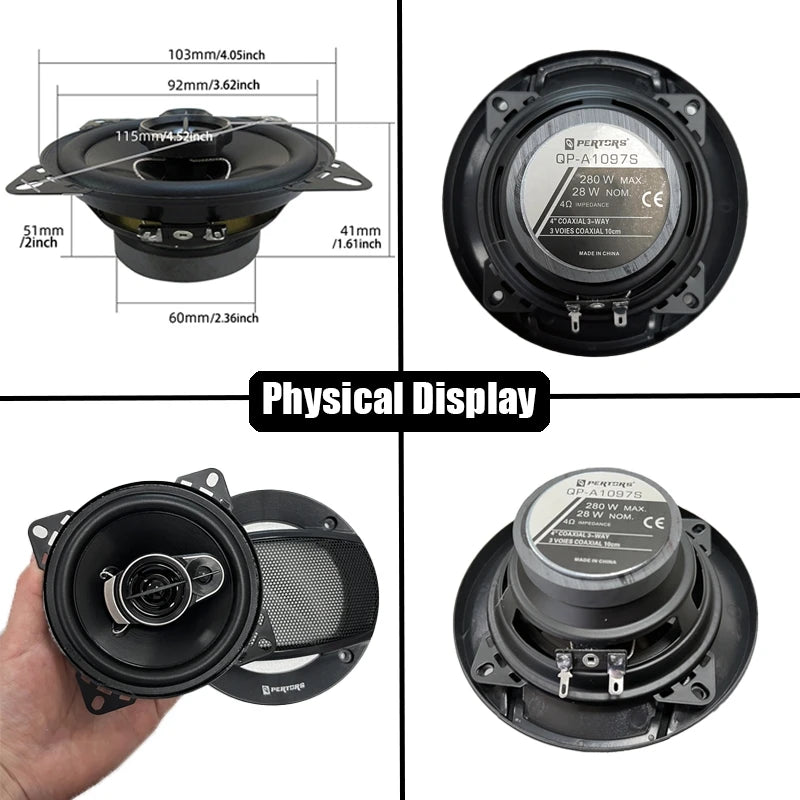

Product size: 4 inches
Speaker type: coaxial speaker (full frequency range)
Number of sound channels: 3-Way
Material: Metal+Magnet+Plastic
Color: Black
Applicable models: Universal Car, Truck, Bus
Voltage: 12V~24V
Impedance: 4 ohm
Distortion: less than 1%
Max. Music Power 280 w
Nominal Power 28 W
Woofer 100mm(4")
Midrange φ 40mm
Tweeter φ 11mm Dome
Frequency Response: 30 Hz To 36 Khz (-20db)
Drum: PP injection molding
Diaphragm: Surround PP rubber
Sensitivity: 92 Db(±1.5db)

Package：

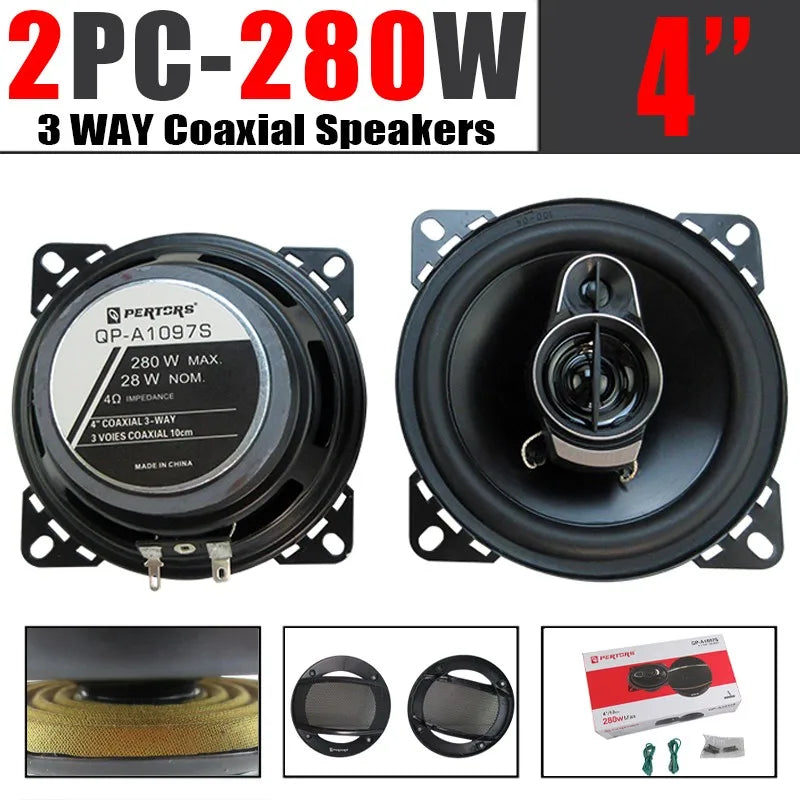

2X 4" Speakers
2X 4" Speaker covers
2X Speaker cables
1X Screw kit

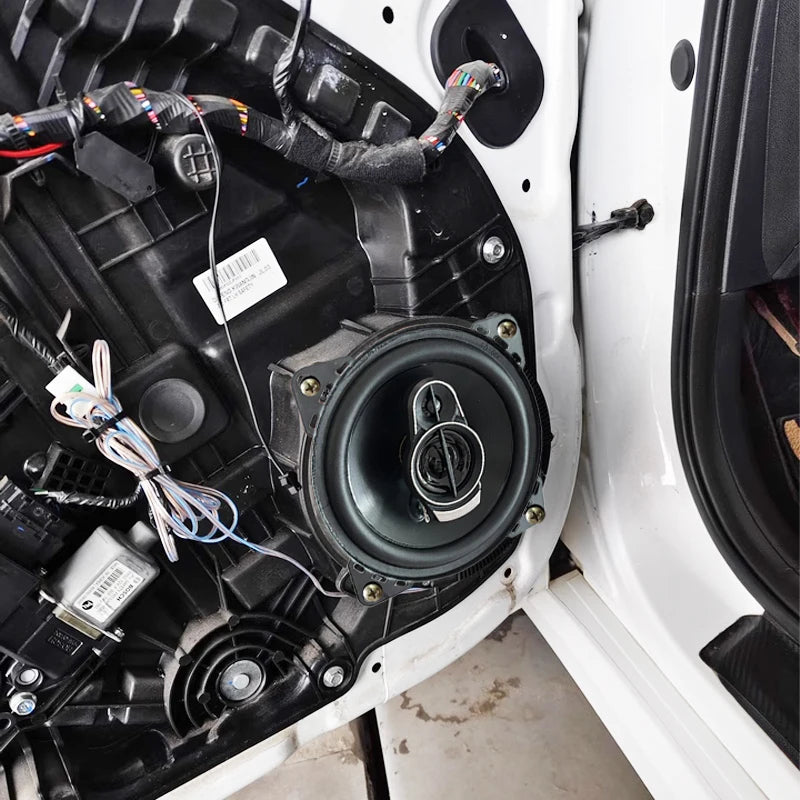

Installation Instructions

To protect the vehicle, cover it with a dust cloth.

Pry the door, unscrew the screws inside and around
the door panel, and force outward from the bottom of the door panel to remove the door.

Remove the original car horn first fix the gasket on the original car horn.

1. To protect the vehicle, add a dust cloth to the vehicle
2. Remove the door panel (trim panel)
3. Remove the original car speaker
4. Fix the speaker bracket
5. Fix the speaker crossover
6. Connect the speaker terminals
7. Fix the speaker to the bracket
8. Connect the cross connection to the speaker wiring
9. Remove the original car speaker and replace the speaker
10. The reset and replacement of the door panel is completed

DETALS OUALITYTHE DETAILS SHOW THE OUALITY

TREBLE TOP
Let your voice flow smoothly
Soft and sweet
Raised tweeter
The sound is briaht and metallic

HIGH OUALITYRUBBER EDGE
High quality rubber edge
High temperature resistance and anti-aging
Can be used for a long timewithout deformation

ELASTIC WAVE
Power of bounce
Reduce the loss of distortion degree
Restore the real voice

NO SOLDERINGWIRE TERMINALS
Solderless wire
Pure copper material terminals
Guaranteed signal transmission
Easy to operate

CAST IRONBASIN STAND
Cold steel forging technology
The horn pelvic frame is strong
Reduce resonance effect in use
The frosted process is durable

HIGH ENERGY MAGNET
The remanence is low
The recovery magnetic permeability is small
coercive force is greater
Strong anti-demagnetization ability

HORN SCREEN COVER
With horn mesh cover
Better protection of the horn

Attention:

1. Before buying, please confirm installation size, ensure the length and height of machine panel is suitable for your car.

2.Before installation, please carefully check the car horn lines, if grounding, please reconnect the lines before linking our machine, otherwise it may burn the machine.

3.The actual power of the speaker itself is not very large, there will be murmurs and buzzing when the speaker is very loud.

4.There will be murmurs and buzzing when the reconfiguration process is not connected correctly.

5. If there is no power amplifier installed, the sound of the main unit is not good and the power is not good, there will be murmurs and buzzing when the speaker is loud.
